Gallery
Cardiff
One walk-in Freezer room with wall mount Combisteel Cooling system and one 14kW electriQ Air Conditioning Unit with cassette ceiling indoor unit

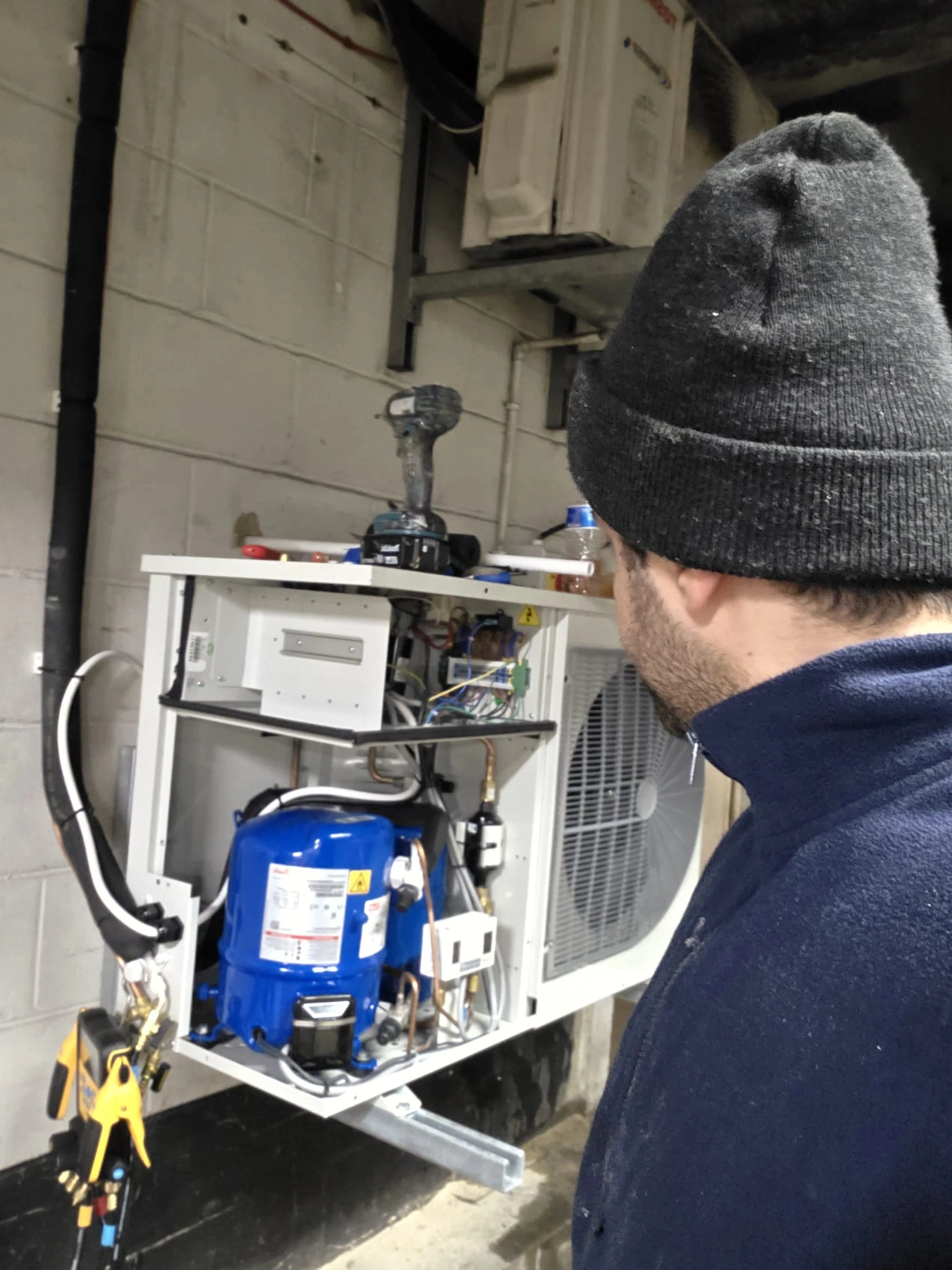

London
walk-in Freezer Room, Danfoss Condenser Cooling and Condenser Evaporator

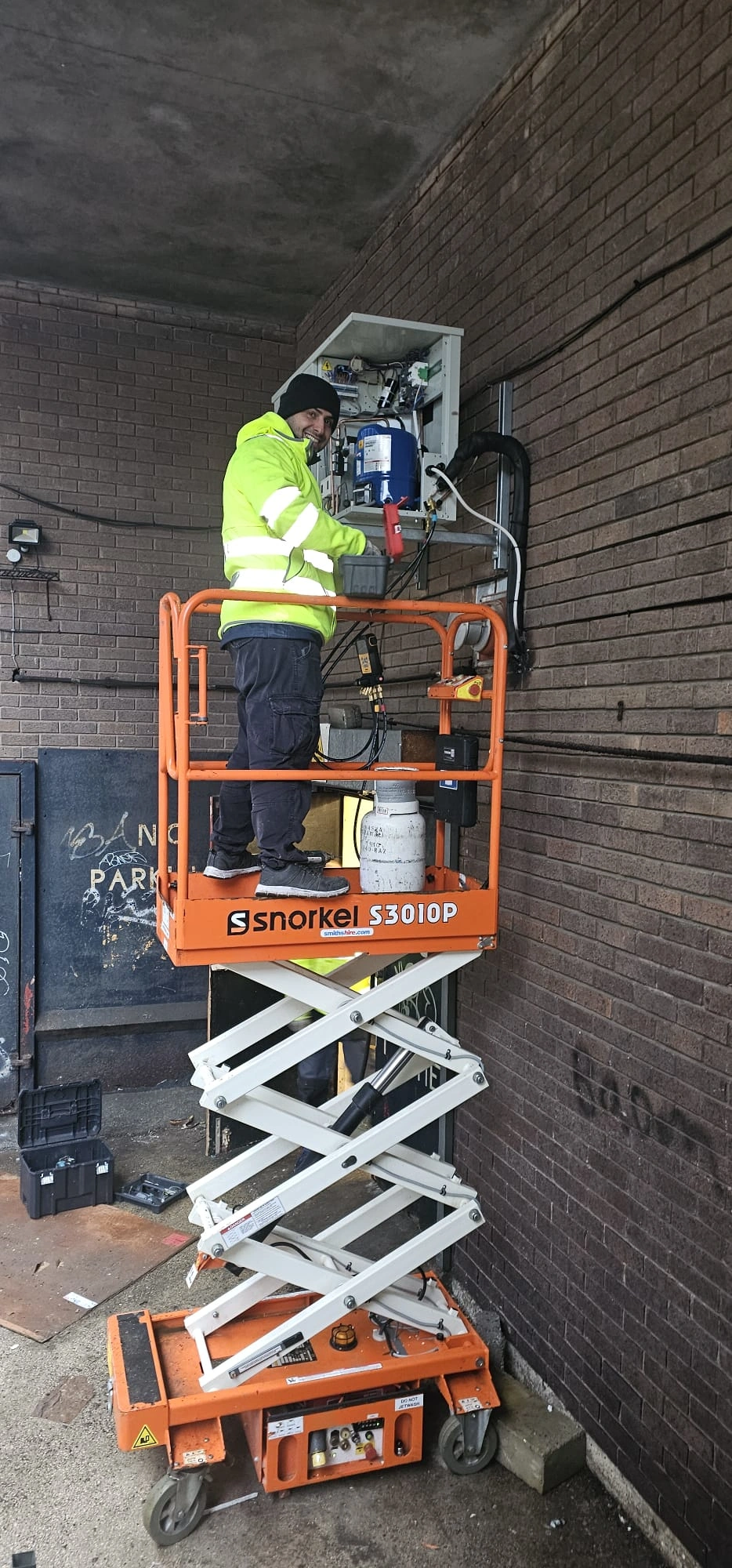

Sunderland
Walk-in Freezer Room, Danfoss Condenser Kelvin Evaporator

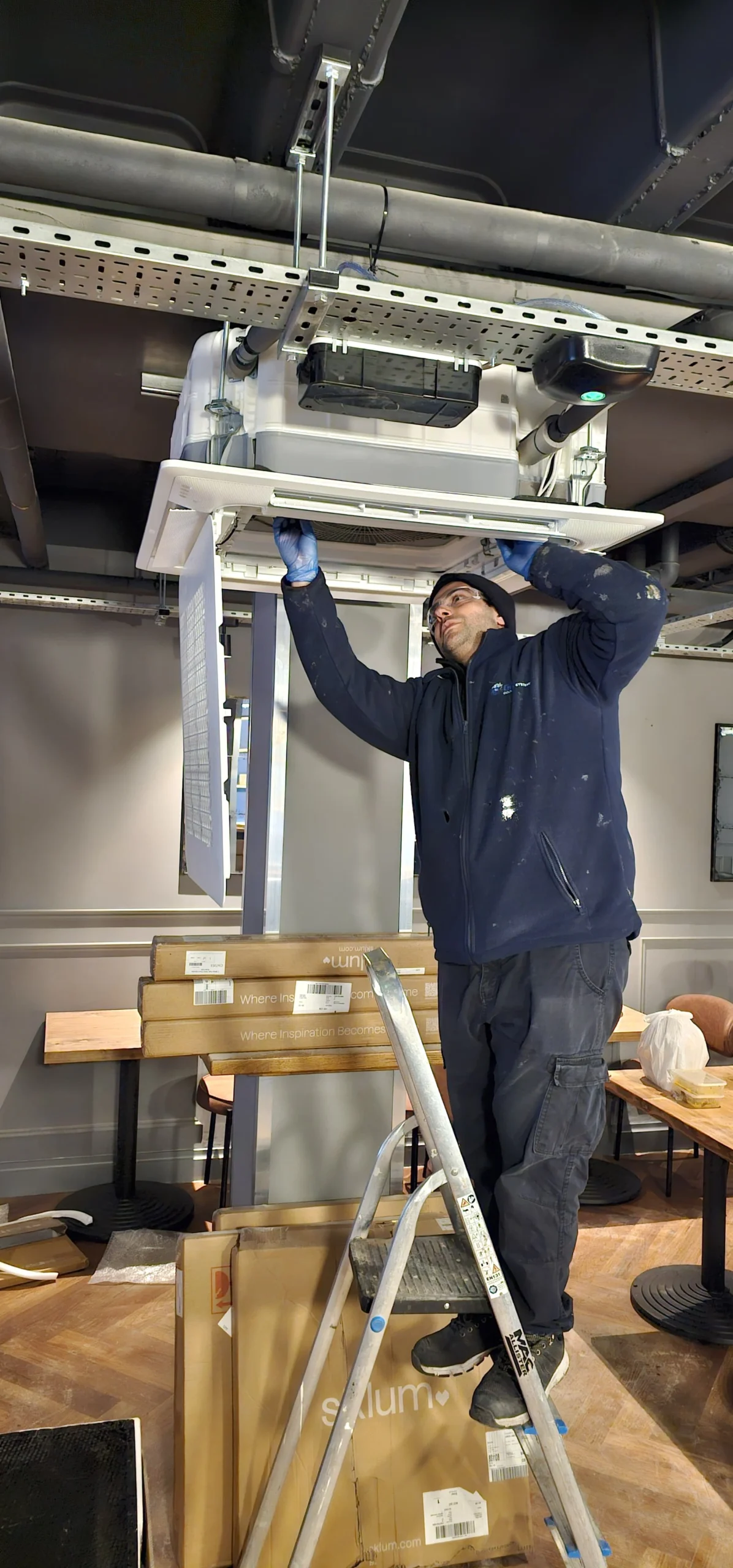

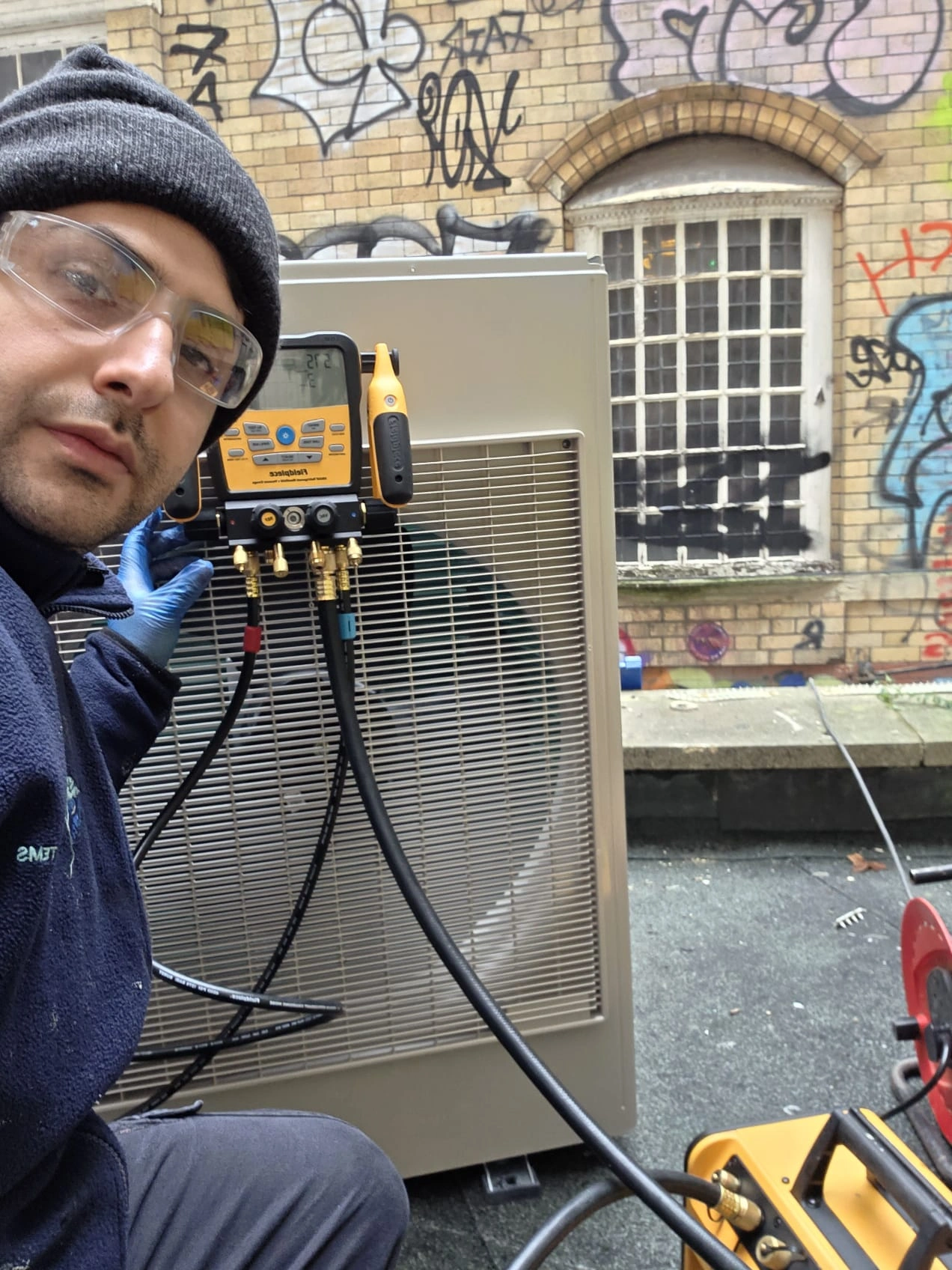

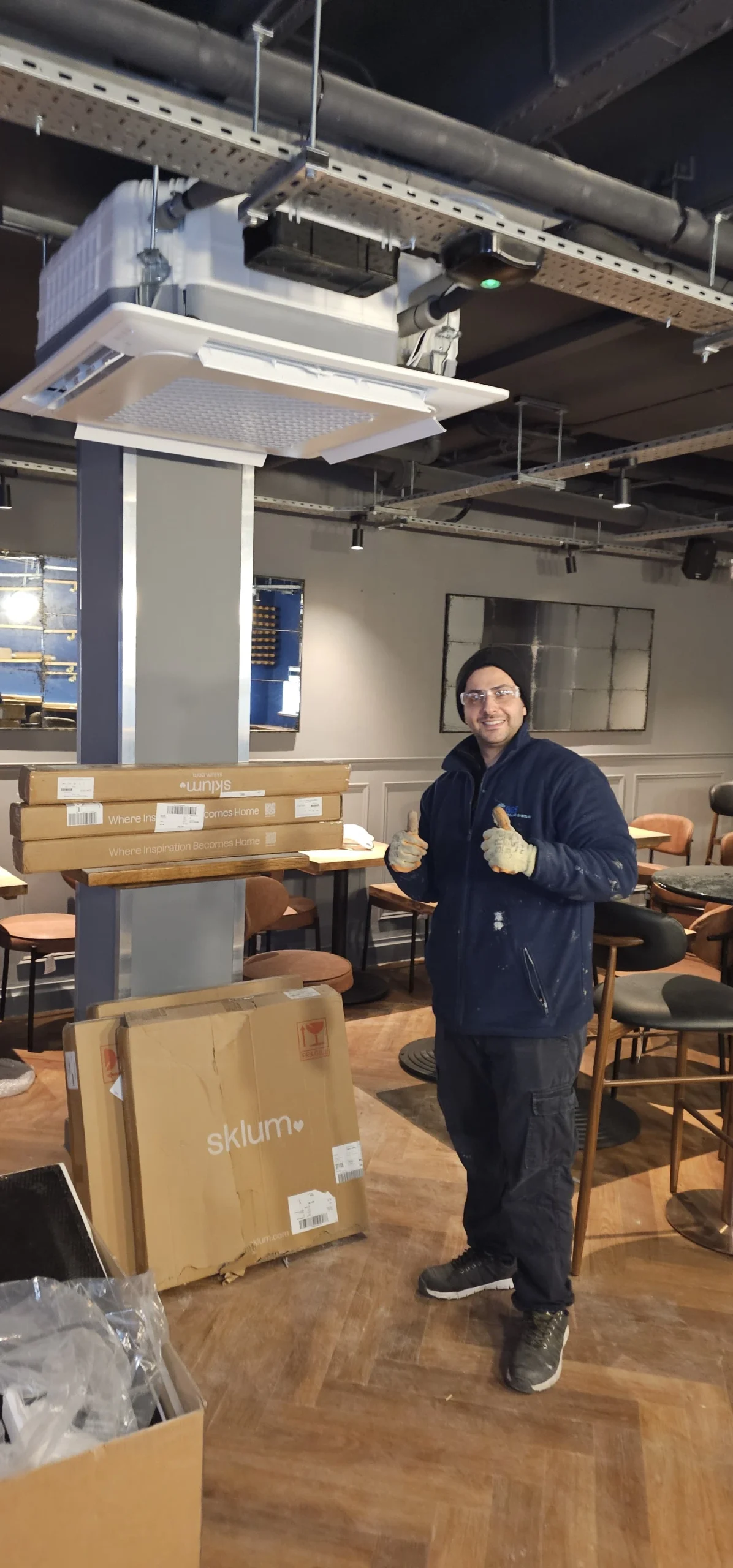

Bristol
14kW Samsung Air Conditioning cassette ceiling type

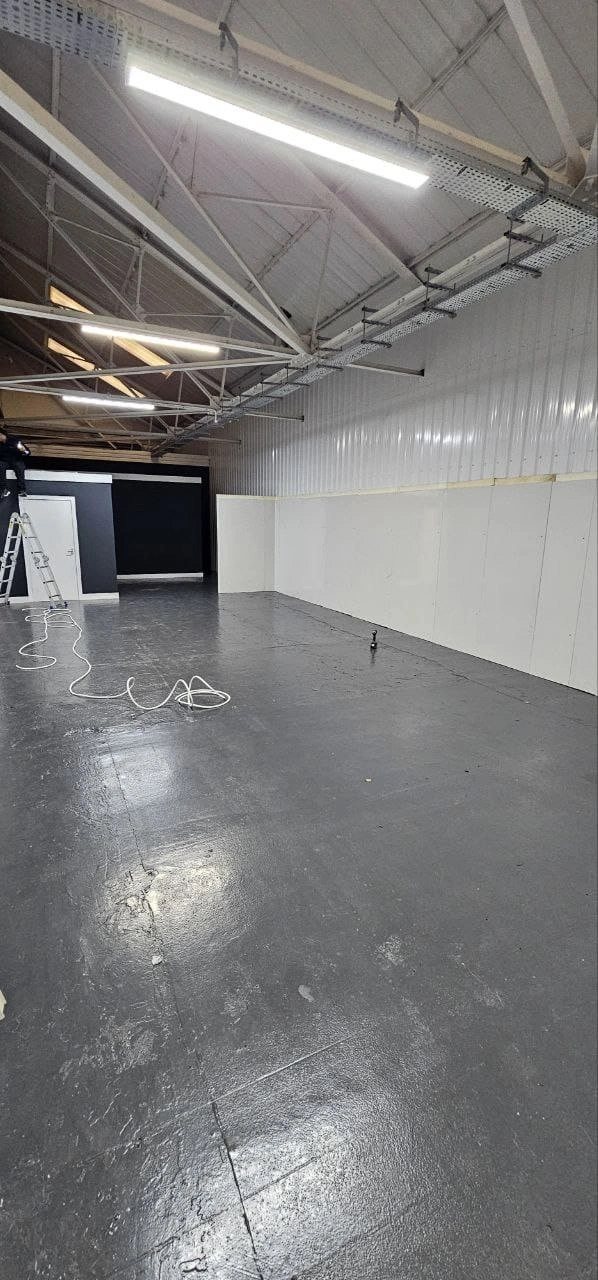

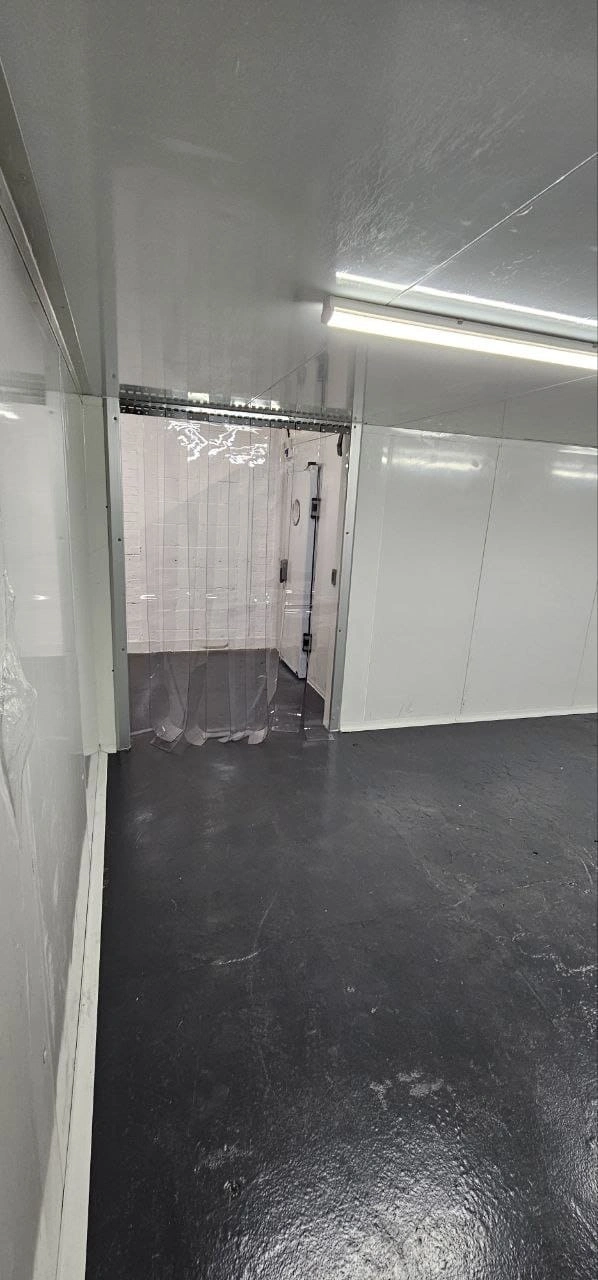

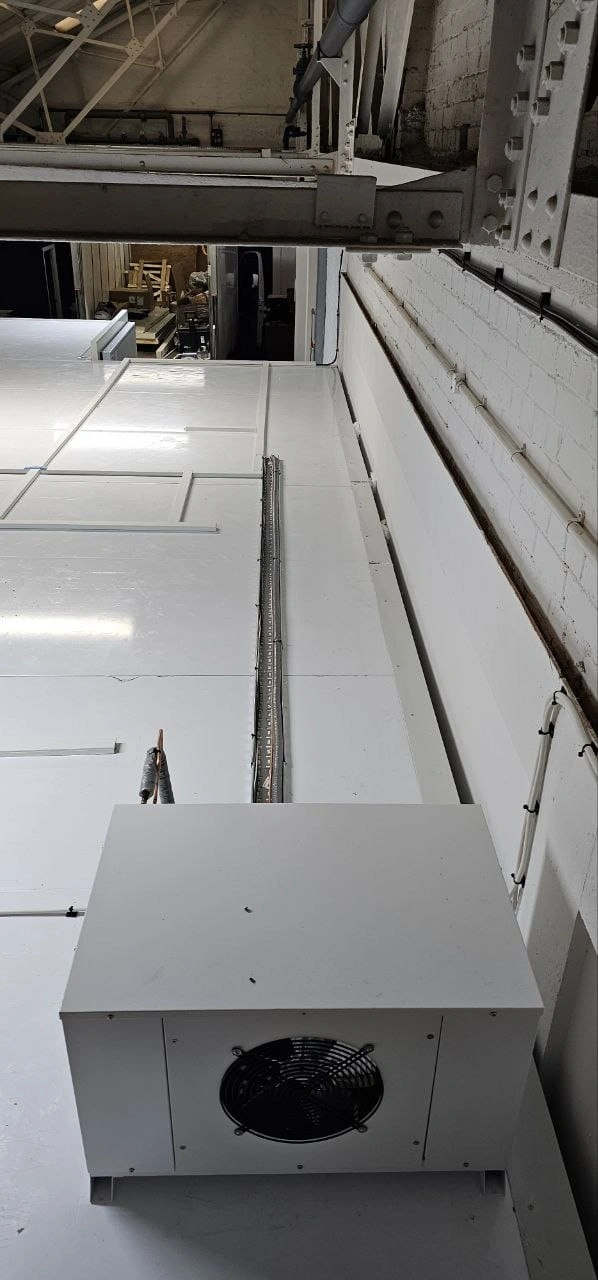

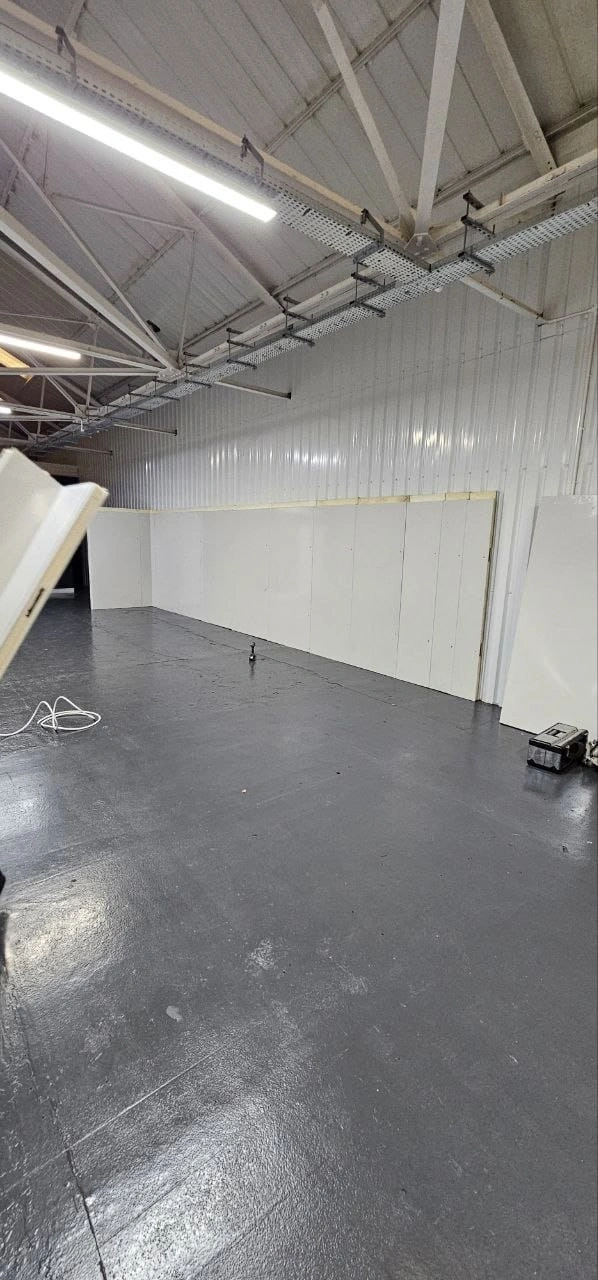

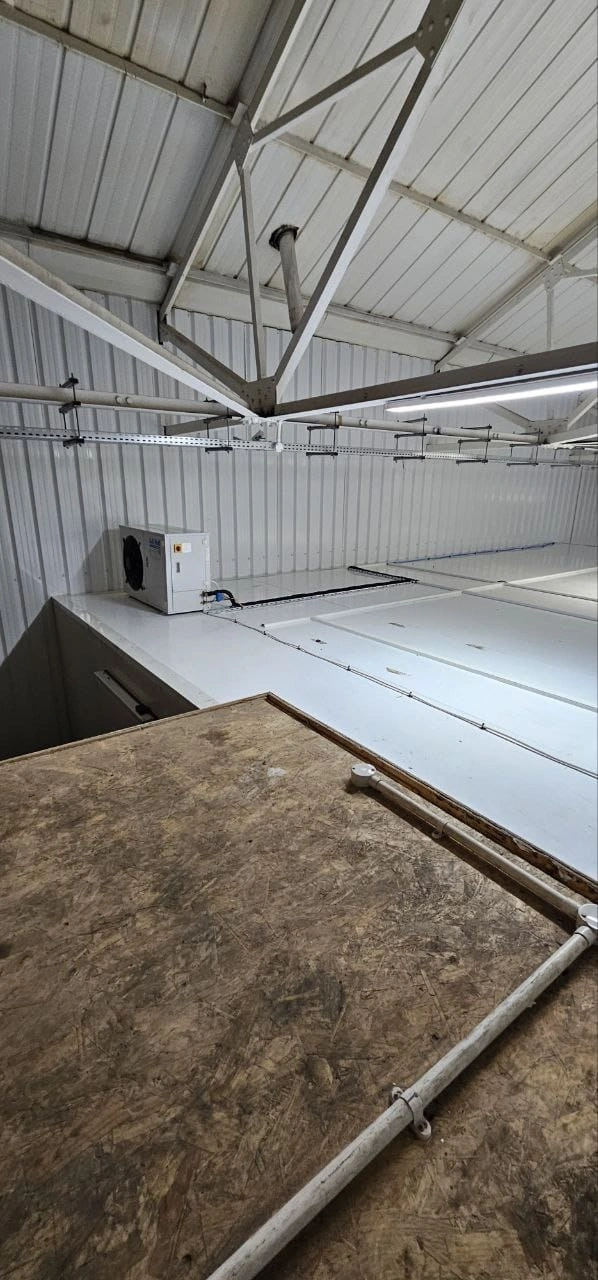

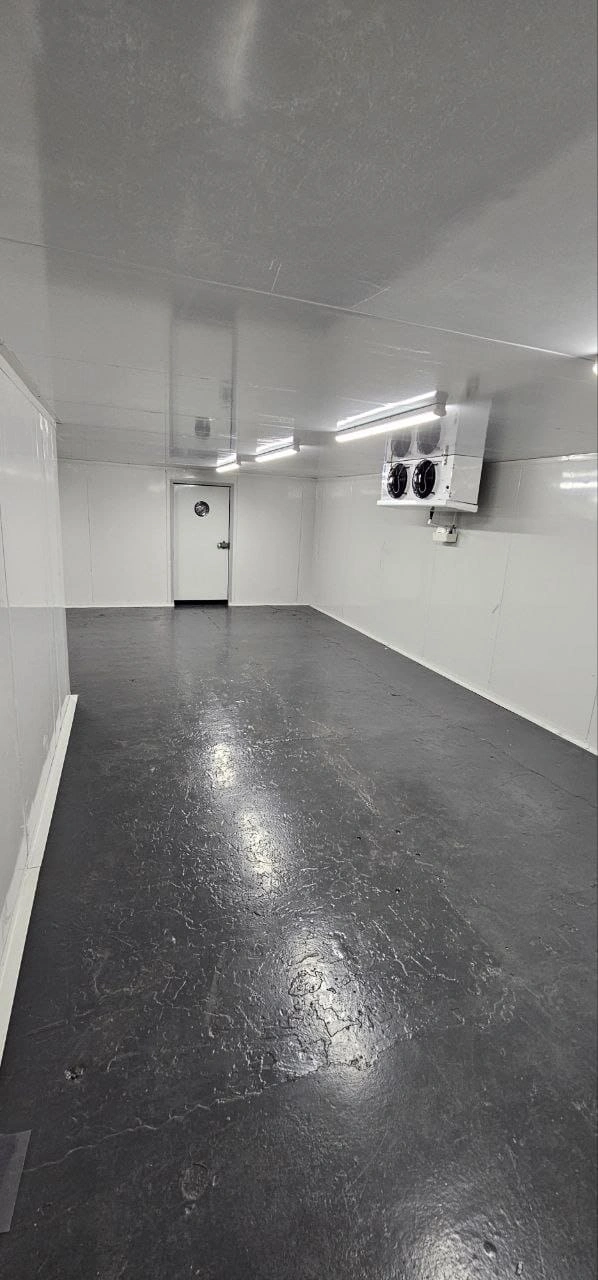

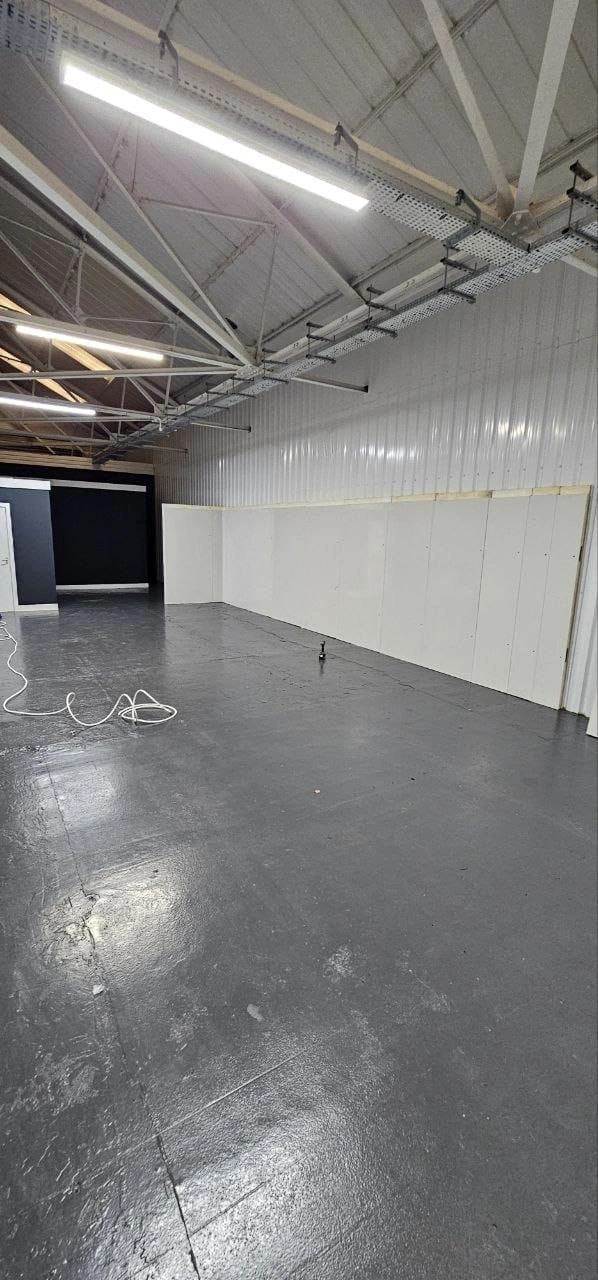

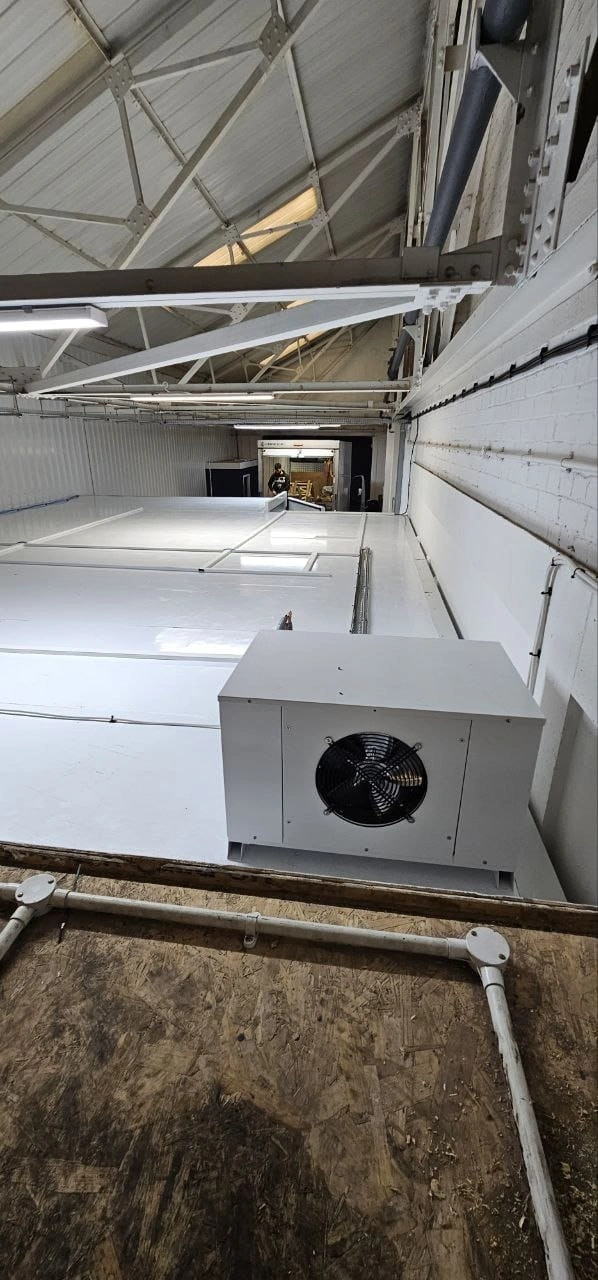

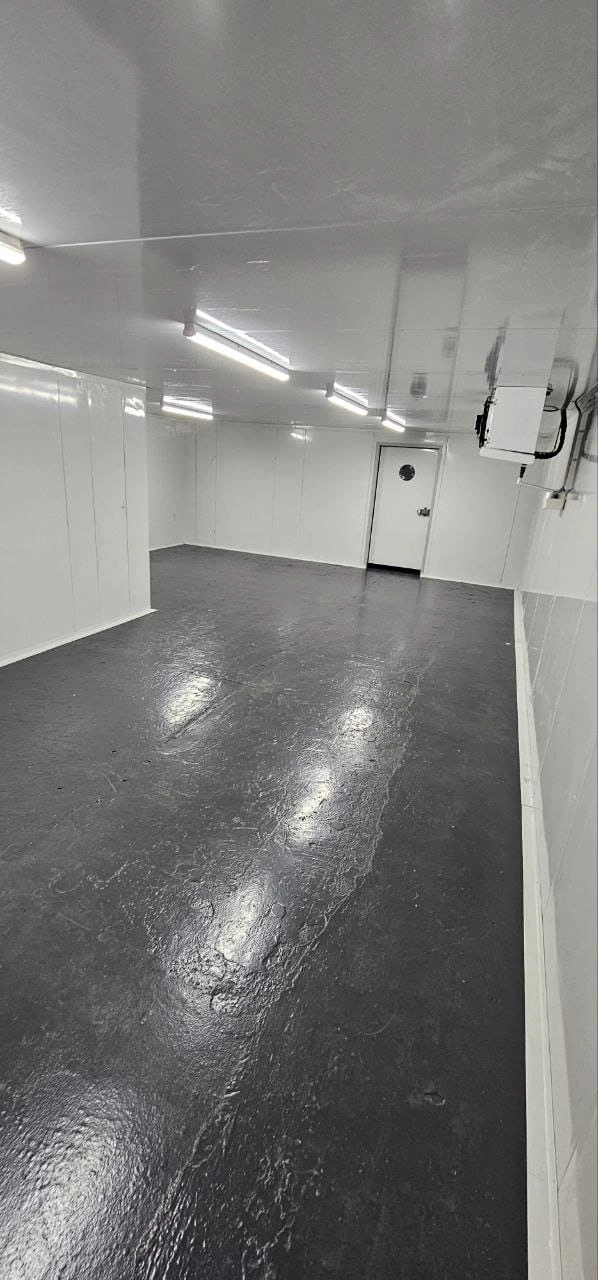

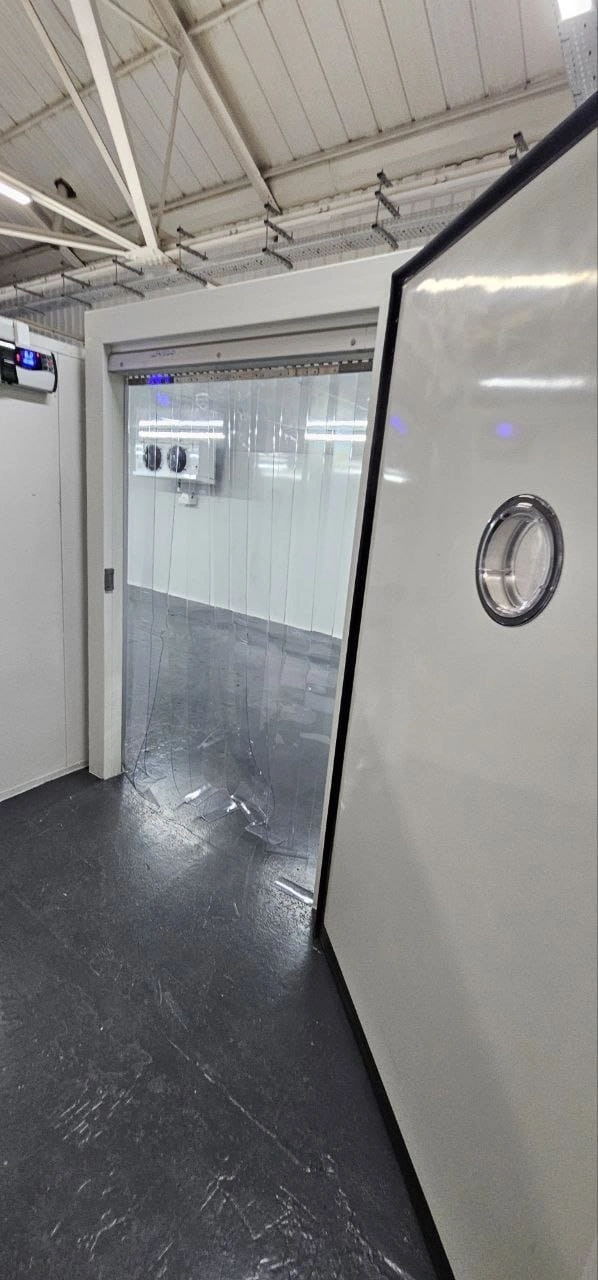

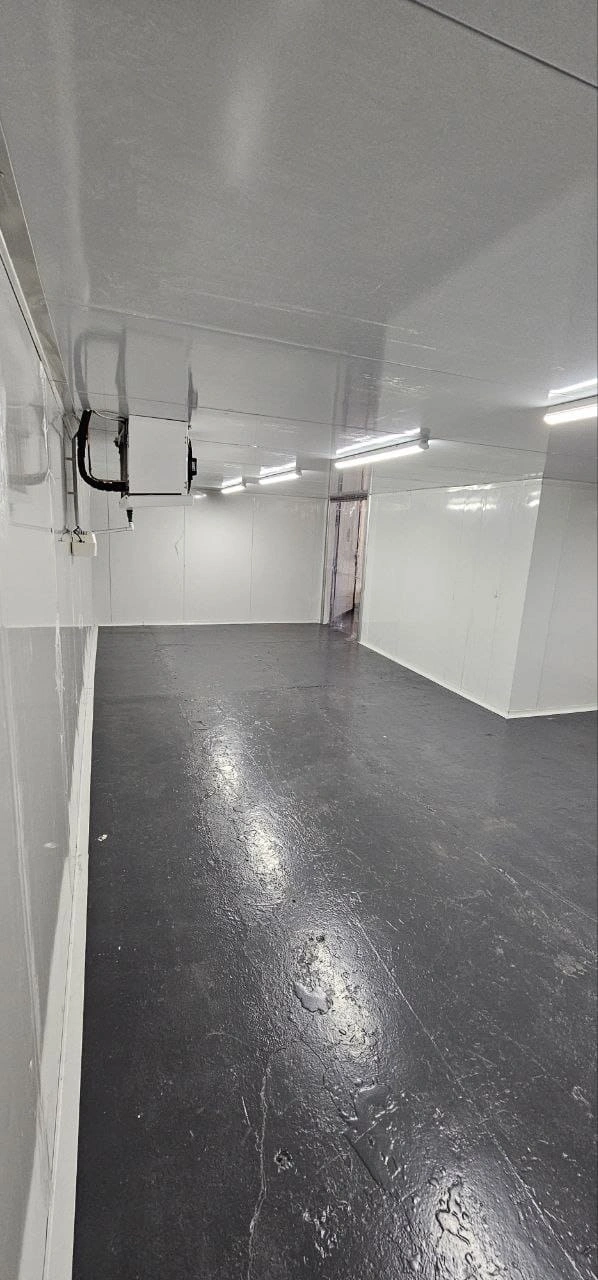

Birmingham
Twin walk-in Chiller Rooms with J&E Hall Condenser and Gunter Evaporator for bigger one with 1400mm hinged door and Combisteel Cooling system for small room

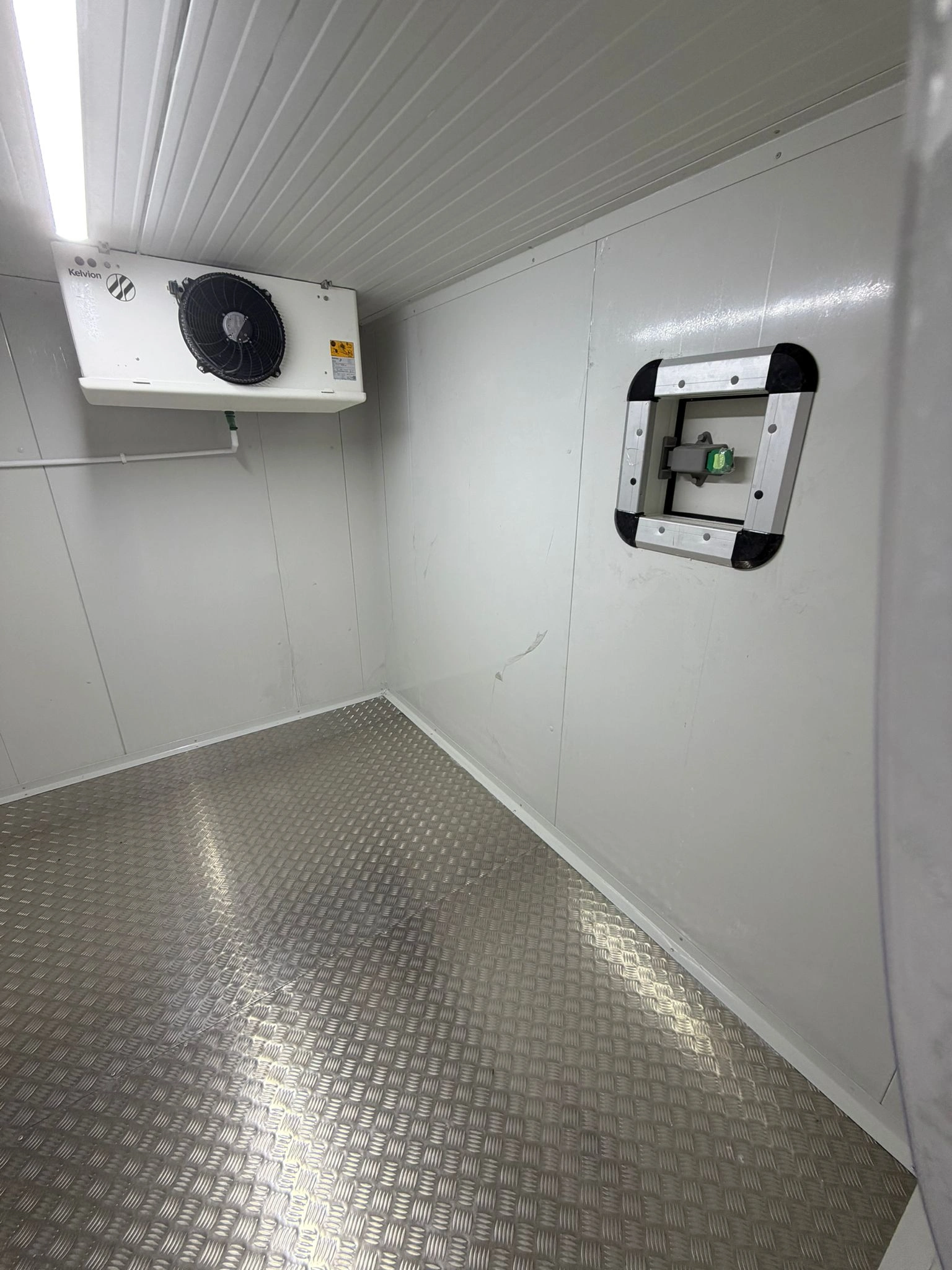

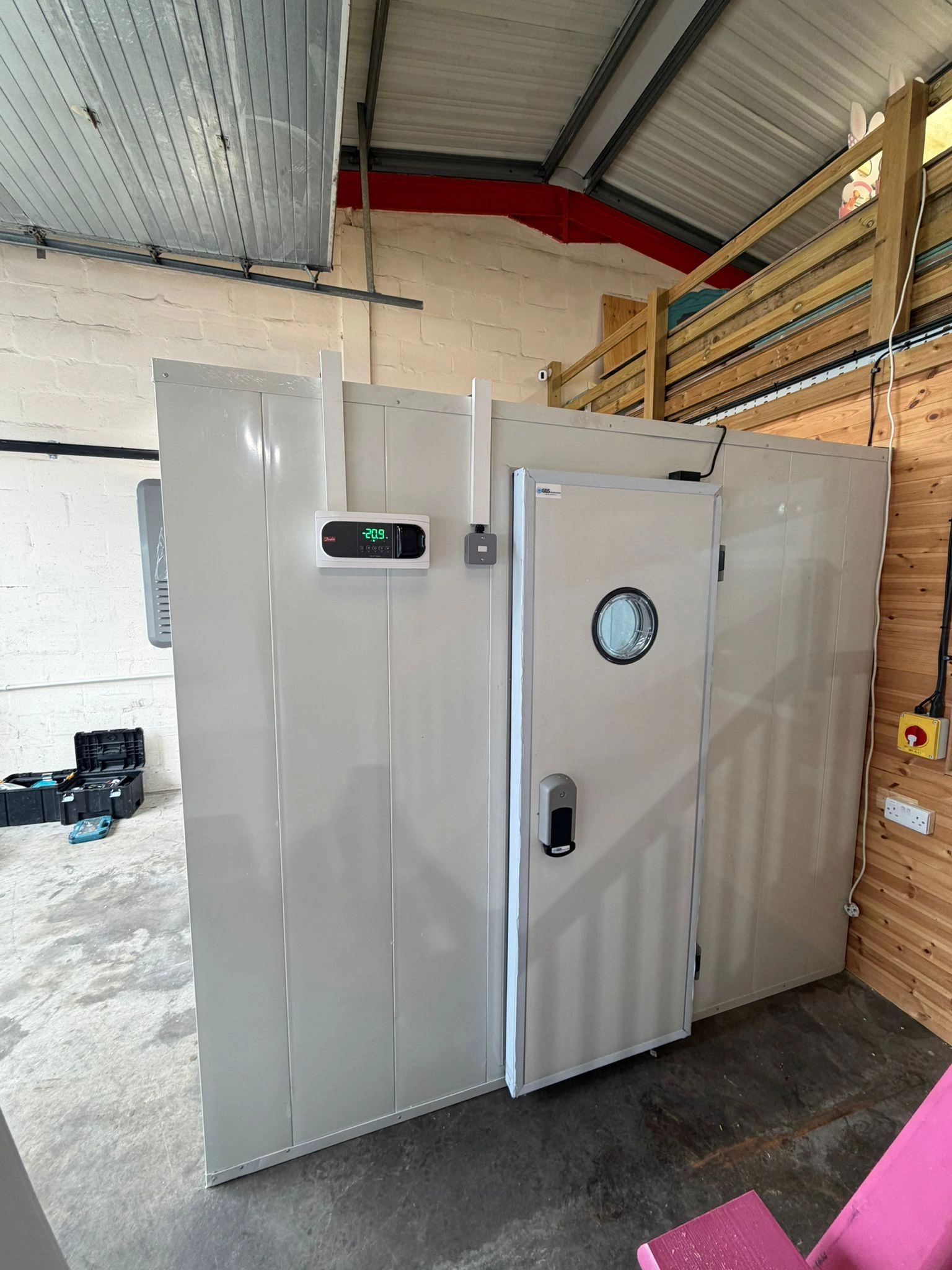

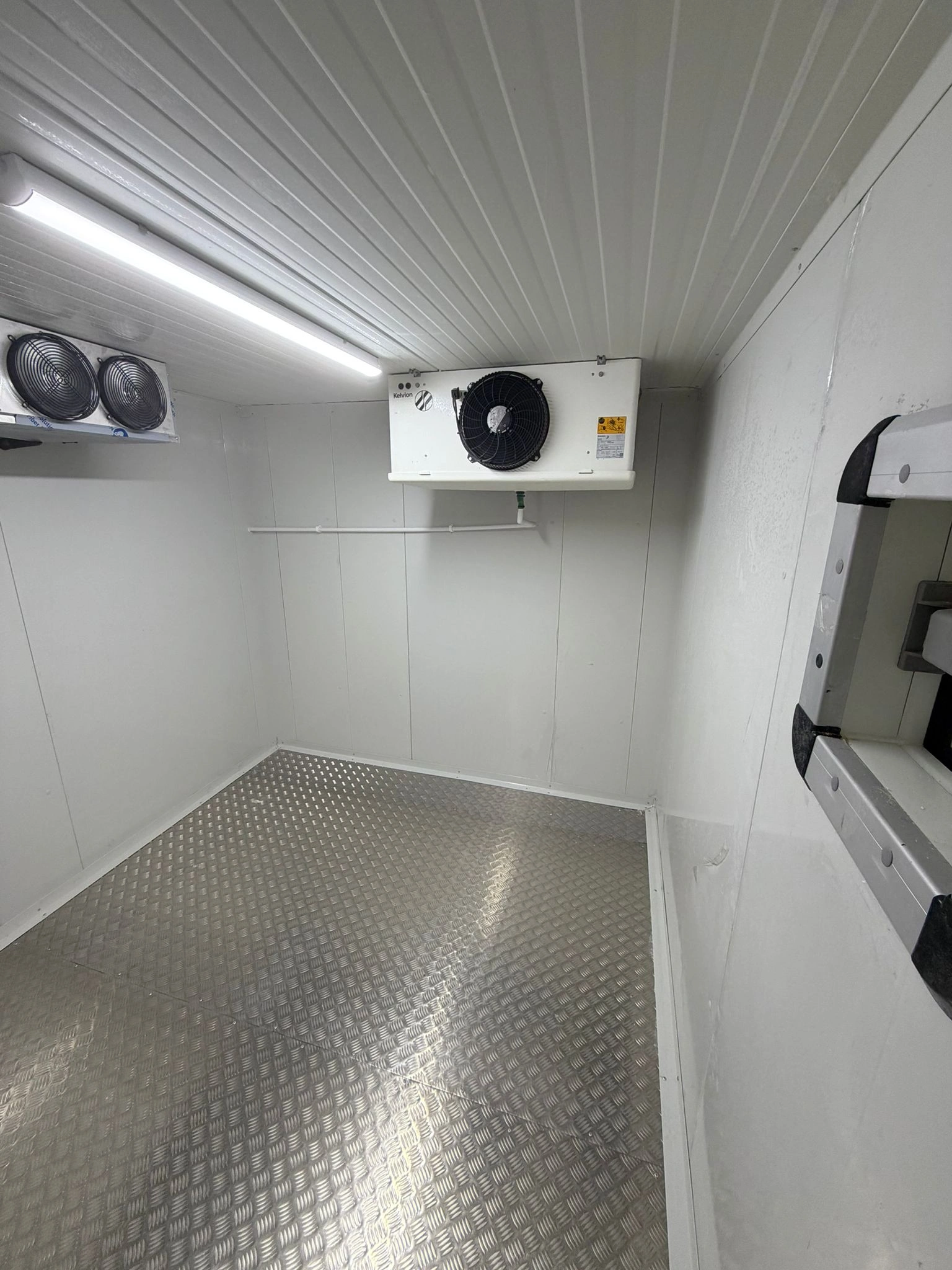

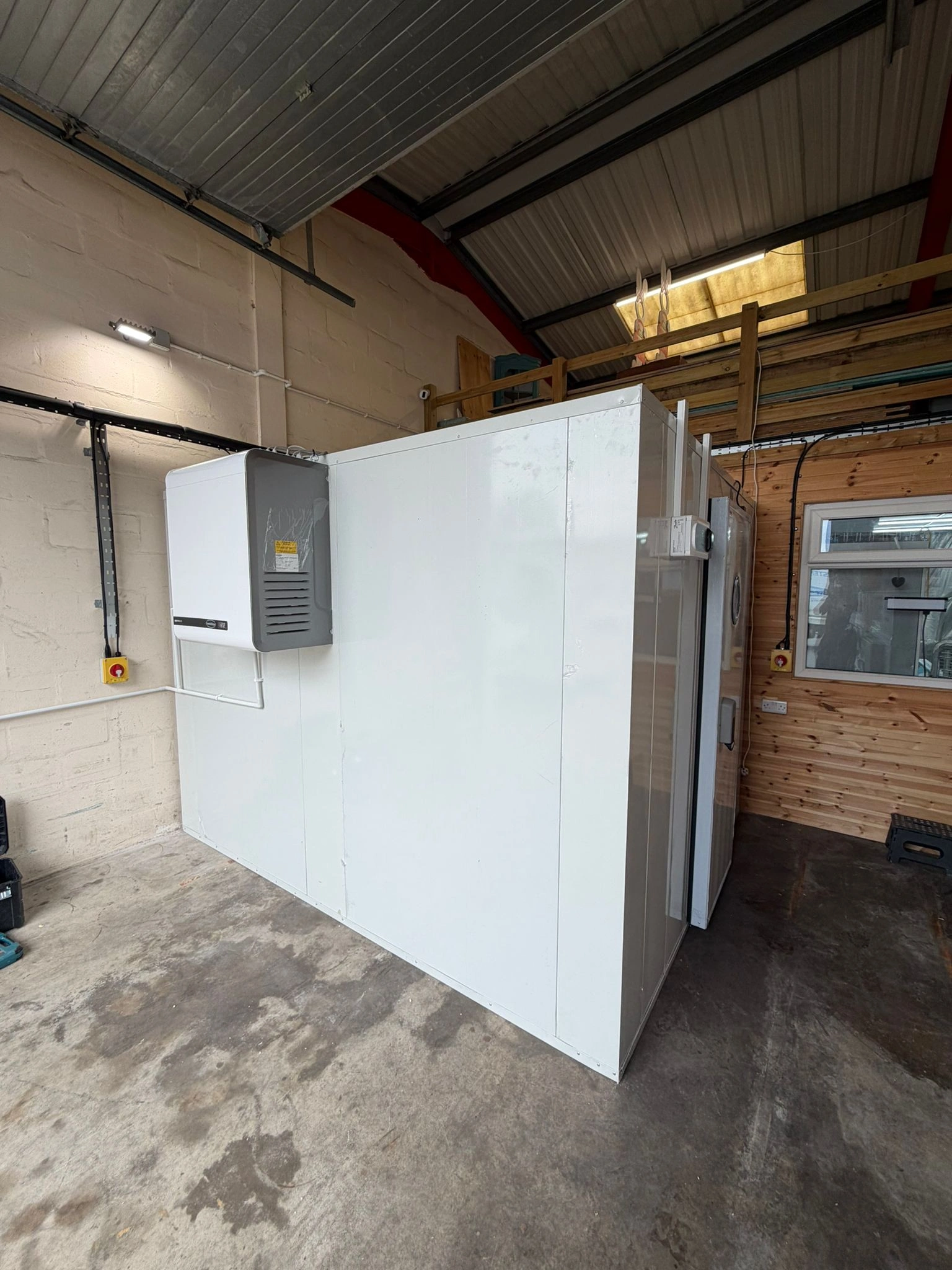

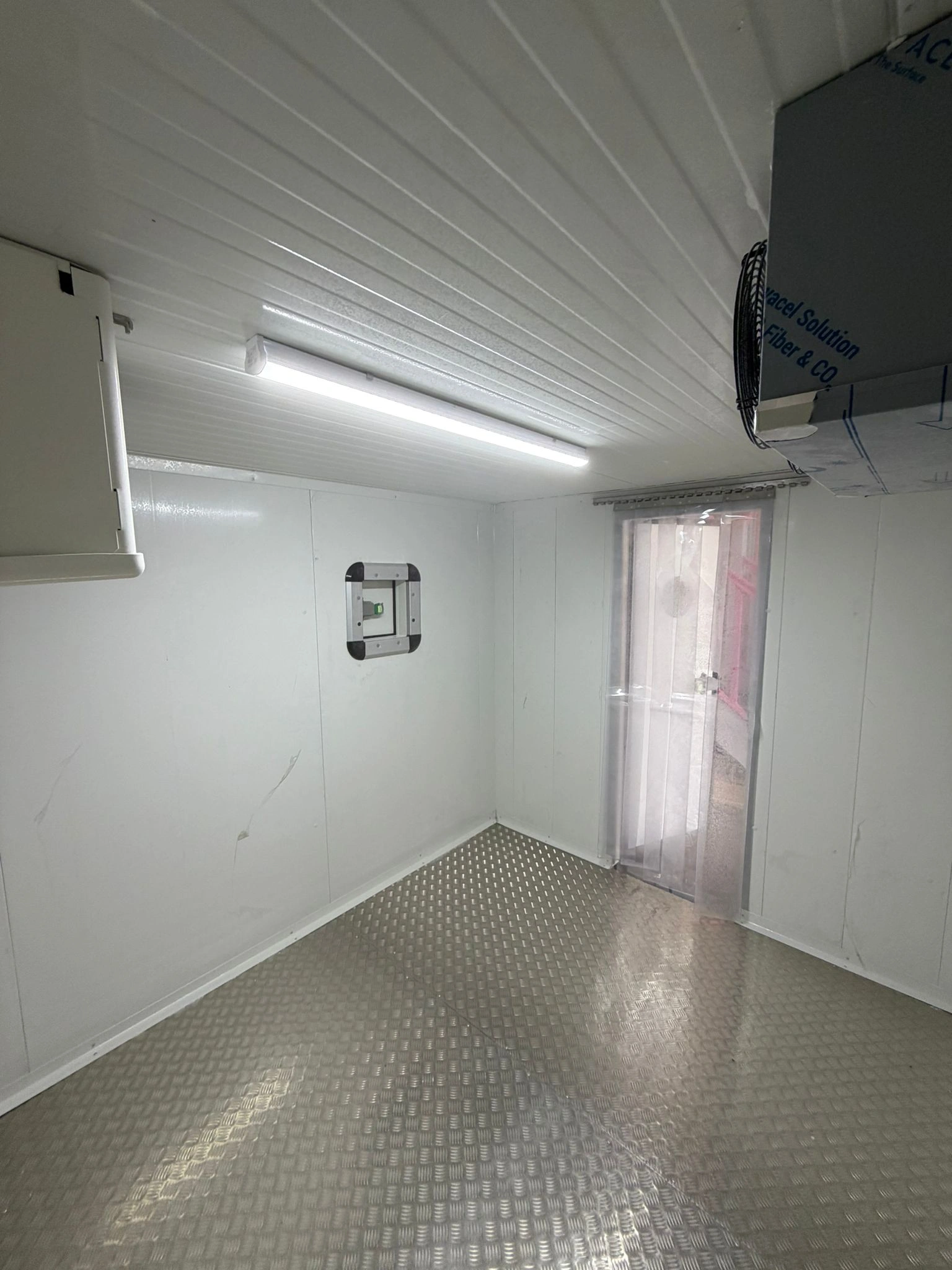

Freezer Room Installation
DIMENSIONS
External Size: 3000 (W) x 2500 (D) x 2200 (H) mm
Internal Size: 2840 (W) x 2340 (D) x 2040 (H) mm
Capacity: 13.56 m3
CONSTRUCTION DETAILS
Panel Thickness: 80 mm
Floor: Standard floor
Door: 1 x Hinged door (630 W x 1900 H mm)
REFRIGERATION SYSTEM
Primary Condensing Unit:

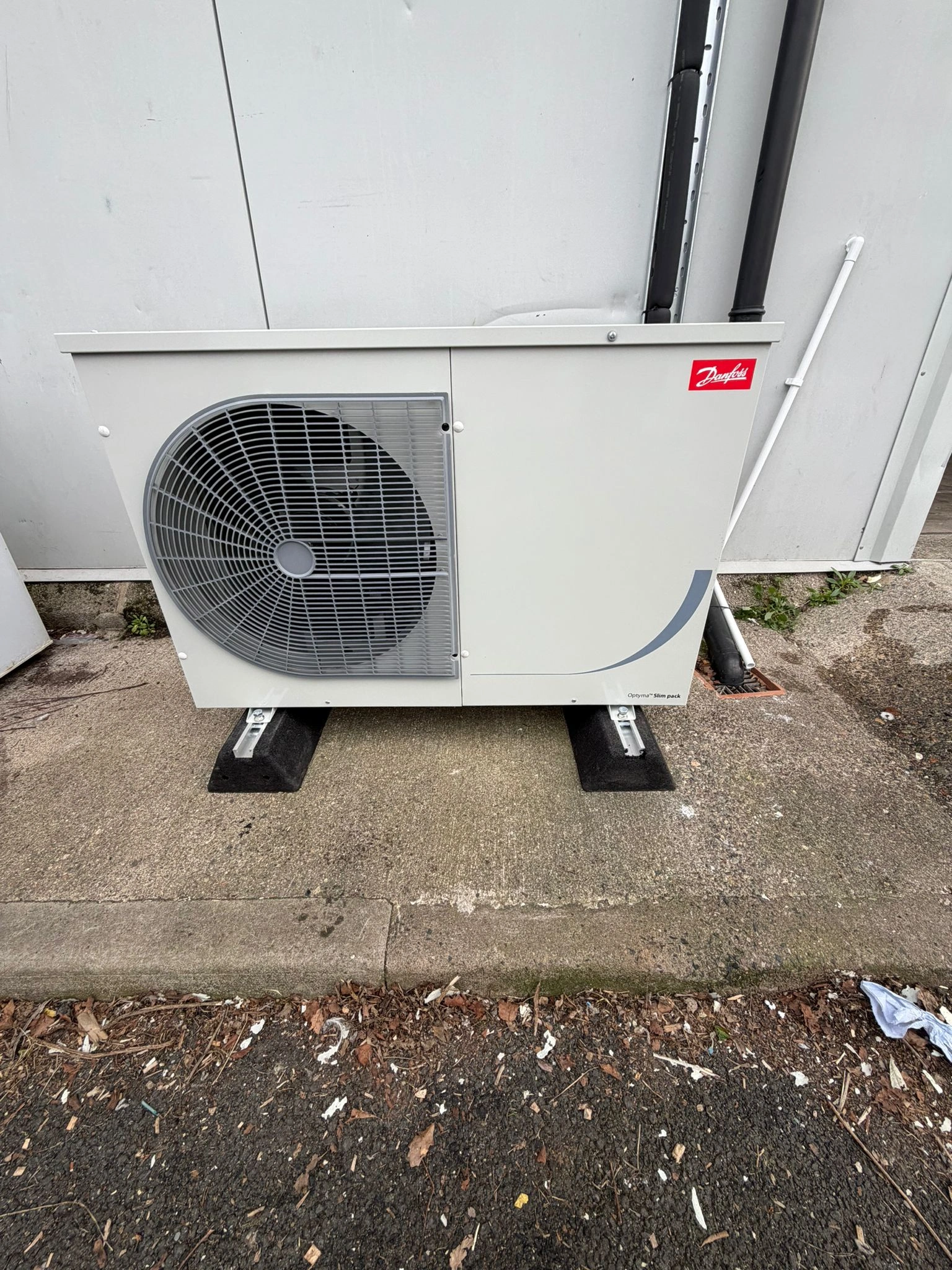

Model: Danfoss Optyma Slim OP-LSQM068NTWO5G
Phase: 1PH
Backup Condensing Unit:
Model: Combisteel Monoblock Unit
Function: Backup unit
Cooling Specifications:
Refrigerant: R290
Temperature Range: -10°C to -25°C
EVAPORATOR
Model: Kelvion Cooler KSC-301-SBE
Defrost Type: Electric Defrost
CONTROLLER
Model: Danfoss Optyma Controller AK-RC205C
Phase: 1PH
ADDITIONAL FEATURES
Access Window: 300 x 300 mm
Includes heated element to prevent condensation
Freezer Room Installation
DIMENSIONS
External Size: 2400 (W) x 9300 (D) x 2200 (H) mm
Internal Size: 2240 (W) x 9140 (D) x 2040 (H) mm
Capacity: 42 m3
CONSTRUCTION DETAILS
Panel Thickness: 80 mm
Floor: Standard floor
Door: 1 x Sliding door (1500 W x 1900 H mm)
REFRIGERATION SYSTEM
Condensing Unit:
Model: J&E Hall 4HP Low Condensing Unit (JEHS-0400-B3-L-3)
Phase: 3 Phase (400V)
Compressor Type: Scroll
Cooling Capacity: 3.98 kW
EVAPORATOR
Model: Guntner GACC RX 040.1/2WN/FJA7E.TNNN
Type: Electric Defrost
Fin Spacing: 7 mm
CONTROLLER
Model: Danfoss AK-RC 205C
